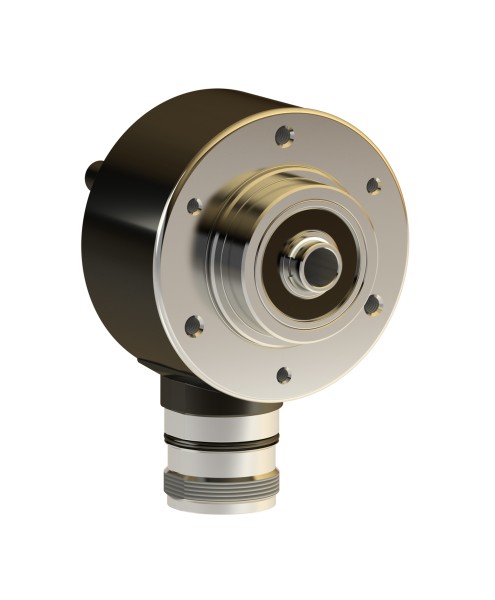

Incremental Encoder SOI58-H/S3 SIL3/PLe
Price on request
Prices plus VAT plus shipping costs
Delivery time 60 Workdays
More Options Fewer options
Order code
SOI 58 HK 7,3 1 1 0 A 1024 2 6 S3 H 01
The mechanical angular position of the hollow shaft is sensed and translated into SINUS/COSINUS... more
Product information "Incremental Encoder SOI58-H/S3 SIL3/PLe"
The mechanical angular position of the hollow shaft is sensed and translated into SINUS/COSINUS signals. The digital square-wave pulses are calculated from these signals. The design meets the functional safety requirements of IEC 61508: SIL3 and ISO 13849: PLe (CAT4). The encoder is suitable for safe motor feedback systems according to IEC 61800-5-2.
The rugged aluminum housing is zinc alloy plated and is available with a connector (M12 or M23, both radial) or cable outlet (standard: PVC, 8-pin, radial). The hollow shaft up to 14 mm is made of stainless steel AISI 303.
| Product category: | Rotary encoders |
| Inkremental or absolute: | Incremental |
| Product group: | SOI |
| Design: | 58 mm |
| Flange: | Flange with blind hollow shaft Flange with blind hollow shaft 7,3 mm, tapered 10 % |
| Shaft diameter: | 7,3 mm, tapered 10 % (only at flange HK) 10 mm (only at flange HB) 12 mm (only at flange HB) 14 mm (only at flange HB) Other values at flange HB, e.g. 9.52 mm or 12.7 mm on request |
| Protection class: | IP65 |
| Electrical connection: | 1 x cable, PVC, 8-wire, axial (further cables on request) 1 x cable, PVC, 8-wire, radial (further cables on request) 1 x connector M12, axial 1 x connector M12, radial 1 x connector M23, CCW, axial 1 x connector M23, CCW, radial |
| Cable length in metres: | 0 = connector 2 m 5 m 10 m |
| Housing material: | Aluminium |
| Resolution: | 250 pulses/360° 256 pulses/360° 360 pulses/360° 500 pulses/360° 512 pulses/360° 1000 pulses/360° 1024 pulses/360° 1500 pulse/360° 2000 pulse/360° 2048 pulses/360° 2500 pulses/360° |
| Versorgungsspannung: | 5 VDC 11 to 30 VDC |
| Output signal: | A , B, Z, A/, B/, Z/ or S, C, Z, S/, C/, Z |
| Signal form: | HTL SIN / COS TTL |
| Certification: | PLe SIL3 |
| Special feature: | CAT 4 |
| Electrical and/or mechanical variant: | Standard |
