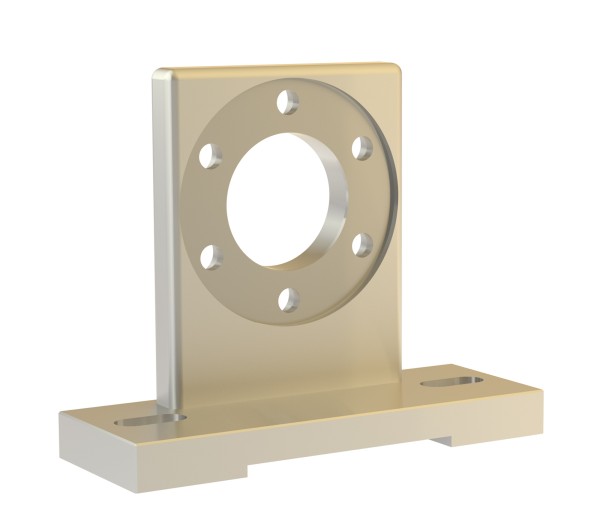

Mounting Bracket MW-X-03

Image may differ

Price on request

Prices plus VAT plus shipping costs

Delivery time approx. 60 business days

Order code

MW A 03

Would you like more? 2

Mounting Clamps

Nicht verfügbar

Price on request

Adapter Flange ADAFLA-A01

add

Price on request

The mounting bracket MW-x-03 is intended for cam switches and encoders with cam switch flange... more

Close menu

Product information "Mounting Bracket MW-X-03"

The mounting bracket MW-x-03 is intended for cam switches and encoders with cam switch flange with a clamping collar diameter of 36 mm. The mounting holes for screws of size M6 are located on a pitch circle diameter of 52 mm (3 pieces at an angle of 120°).

Type of accessory:	Installation accessories
Housing material:	Aluminium Stainless steel
Flange:	Camshaft flange with collar-ø 36 mm
Product category:	Accessories
