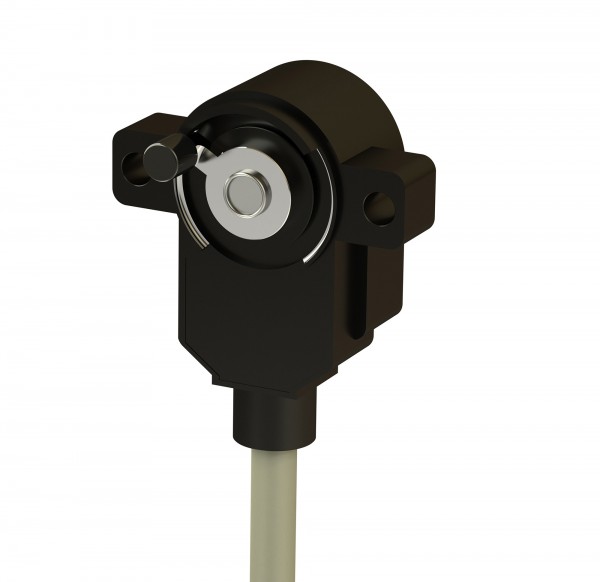

Singleturn Rotary Transducer PMR416
Price on request
Prices plus VAT plus shipping costs
Delivery time approx. 60 business days
Impact-resistant, sealed plastic housing, resistant to splash water, fuels, motor oils and... more
Product information "Singleturn Rotary Transducer PMR416"
Impact-resistant, sealed plastic housing, resistant to splash water, fuels, motor oils and antifreeze - Actuation via angled metal lever - Return spring fitted - Resistance element made of conductive plastic - Multiple contact grinder made of precious metal - Resistance for current limitation fitted in the grinder circuit - Fastening via two side round holes - Electrical connections via side cable outlet with AMP plug.
| Product category: | Rotary encoders |
| Inkremental or absolute: | Absolute |
| Single- or Multiturn: | Singleturn |
| Design: | 39 mm |
| Interface: | Potentiometric |
9 Dateien verfügbar.
more
more
Array ( [15] => Array ( [name] => Datenblaetter [files] => Array ( [de_DE] => Array ( [0] => Array ( [id] => 230 [description] => Datenblatt 10768 [filename] => https://www.twk.de/media/pdf/0b/71/c5/10768cd0.pdf [size] => 167755 [attributes] => Array ( ) ) ) ) ) [17] => Array ( [name] => Handbücher [files] => Array ( ) ) [19] => Array ( [name] => Zertifikate [files] => Array ( ) ) [21] => Array ( [name] => Step Dateien [files] => Array ( ) ) [16] => Array ( [name] => GSD-ESD-ESI [files] => Array ( ) ) [18] => Array ( [name] => Anleitungen [files] => Array ( ) ) [20] => Array ( [name] => Software [files] => Array ( ) ) [56] => Array ( [name] => Technische Dokumentation [files] => Array ( ) ) [22] => Array ( [name] => Sonstige [files] => Array ( [en_GB] => Array ( [0] => Array ( [description] => UKCA Declaration of Conformity [filename] => https://twk.de/media/pdf/89/01/24/16569ae0.pdf ) ) [en_de] => Array ( [0] => Array ( [description] => Reach Konform/compliant [filename] => https://twk.de/media/pdf/97/34/49/15286fb0.pdf ) [1] => Array ( [description] => RoHS Konform/compliant [filename] => https://twk.de/media/pdf/7f/81/9f/13284hb0.pdf ) [2] => Array ( [description] => POP Declaration of Conformity [filename] => https://twk.de/media/pdf/b0/73/2c/17238ab0.pdf ) ) [globe] => Array ( [0] => Array ( [description] => CE Declaration of Conformity [filename] => https://twk.de/media/pdf/0d/49/0e/12467rx0.pdf ) ) ) ) ) 1
