Singleturn Rotary Encoder TTBA

Image may differ

Price on request

Prices plus VAT plus shipping costs

Delivery time approx. 60 business days

More Options Fewer options

Order code

TTBA 58 W S A 360 K A 01

Would you like more? 3

Pre-Lange for Rotary Encoder Model ZHF

Nicht verfügbar

Price on request

Play-Free Clamping Coupling Models KK14

Nicht verfügbar

Price on request

Bellows Couplings Model BKK

Nicht verfügbar

Price on request

The angle transducers have a magnetic scanning. Due to the robust design, critical and... more

Close menu

Product information "Singleturn Rotary Encoder TTBA"

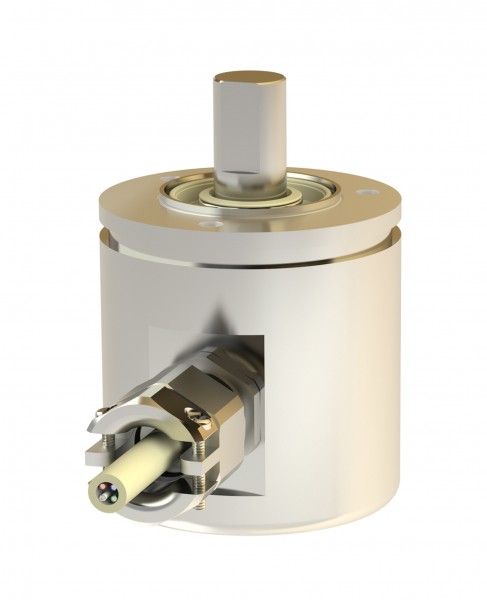

The angle transducers have a magnetic scanning. Due to the robust design, critical and interference-free applications in harsh environments can be realized. They have a robust housing (wall thickness > 5 mm) made of aluminium or stainless steel, shaft and ball bearing made of stainless steel, shaft with flattening, rotor with shaft and permanent magnet mounted in prechamber, sensor circuit consisting of magnetic sensors and interface electronics housed in closed main chamber. Two models are available: For low and high temperature applications.

The model for low-temperature use is equipped with a special grease for bearings and shaft seal. Seals and shaft seal are made of PTFE. Cable gland with clamping jaw pressure screw and silicone seal. The model for high temperature use is without shaft seal. Under the rear cover there is a signal changeover switch (CW/CCW). On the side there is a preset button (4 mA) placed under a screw plug. Electrical connection via M12 plug or special cable.

Product category:	Rotary encoders
Inkremental or absolute:	Absolute
Single- or Multiturn:	Singleturn
Design:	50 mm 58 mm
Flange and shaft:	Clamping flange Synchroniser flange
Housing material:	Aluminium Stainless steel
Signal path:	CCW CW
Interface:	Analogue
Electrical connection:	Cable 1 m Connector (high-temp. only)
Output signal:	0-20 mA 4-20 mA
Electrical and/or mechanical variant:	Basic version
Special feature:	Low and high temperature
