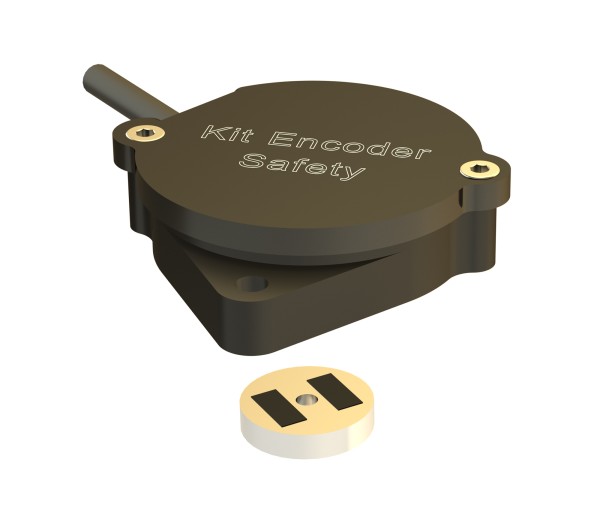

Multiturn Kit Encoder TMN53/S4 SIL2

Image may differ

Price on request

Prices plus VAT plus shipping costs

Delivery time approx. 60 business days

Product group:

Design:

Flange and shaft:

Housing material:

Resolution:

Code type:

Measuring range:

Profile:

Galvanic separation:

Output:

Electrical connection:

Electrical and/or mechanical variant:

More Options Fewer options

Order code

TMN 53 E P 16384 R 18 S4 K1 V2 N 01

Model TMN/S4 is a new generation of bearing-free rotary encoders which provides functional... more

Close menu

Product information "Multiturn Kit Encoder TMN53/S4 SIL2"

Model TMN/S4 is a new generation of bearing-free rotary encoders which provides functional safety due to IEC 61508: SIL2 and ISO 13849: PLd in a cost-effective design. The flat housing with cable output offers a CANopen or CANopen Safety interface. PCB versions without housing are available on request. The TMN has an electronic multi-turn counter that can count 18 bits (262,144) revolutions.

The position magnet is mechanically connected to the application, i.e. mounting on the applications shaft or another moving part. The TMN housing is placed in front of the magnet.

The wear free device can be easily integrated into existing applications with less space for safe position and speed measurements.

Single- or Multiturn:	Multiturn
Product category:	Rotary encoders
Design:	53 mm
Housing material:	Aluminium Plastic Stainless steel
Flange and shaft:	Bearingless “Kit Encoder” with external magnet
Resolution:	4096 steps/revolution 12 bit 16384 steps/revolution 14 bit 65536 steps/revolution 16 Bit
Code type:	Binary
Measuring range:	18 Bit = 262.144 revolutions
Profile:	C3: Standard CANopen version (DS406, 4.1.0) M1: Standard CANopen, profile version 4.1.0 Multi Sensor Interface S4: CANopen Safety certified (DS406, 4.1.0)
Electrical connection:	K1: 1 x radial cable 1 m L1: 1 x axial cable 1 m
Galvanic seperation:	V2: -UB = CAN_GND ǂ screen/housing
Certification:	SIL2
Interface:	CANopen Safety
Special feature:	Without bearings
Electrical and/or mechanical variant:	Standard
