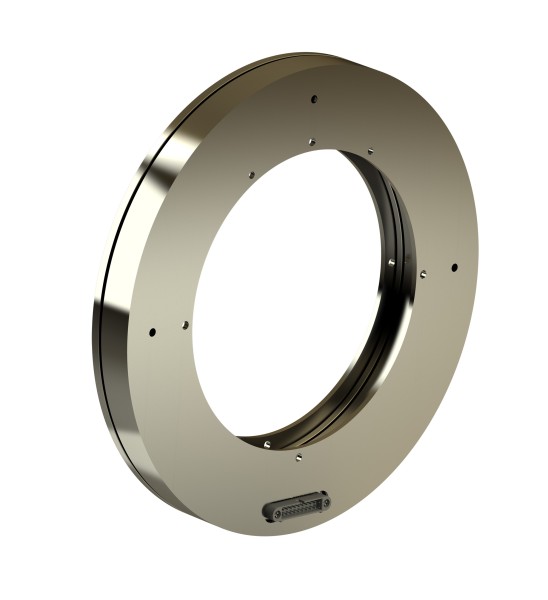

Ring Encoder LBEN SIL2/PLd

Image may differ

Price on request

Prices plus VAT plus shipping costs

Delivery time approx. 60 business days

More Options Fewer options

Order code

LBEN x A S S 4096 R K EN 01

The LBEN Safety Ring Encoder offers maximum signal integrity via SSI and the CANopen safety... more

Close menu

Product information "Ring Encoder LBEN SIL2/PLd"

The LBEN Safety Ring Encoder offers maximum signal integrity via SSI and the CANopen safety interface. Developed for SIL2/PLd applications, it enables precise position measurement, even under extreme environmental conditions. Its space-saving design makes it particularly suitable for compact machines and robot controllers.

Product group:	LBEN
Product category:	Rotary encoders
Design:	50 - 220 mm
Housing material:	Aluminium Stainless steel
Mounting type stator:	Clamp connection Screw connection
Mounting type rotor:	Clamp connection Screw Connection
Resolution:	Up to 22 bits = 4.194.304 steps
Code type:	Binary
Electrical connection:	2x device connector or cable
Certification:	PLd SIL2
Interface:	CANopen Safety SSI
Electrical and/or mechanical variant:	Standard
Special feature:	Hollow shaft encoder Without bearings
