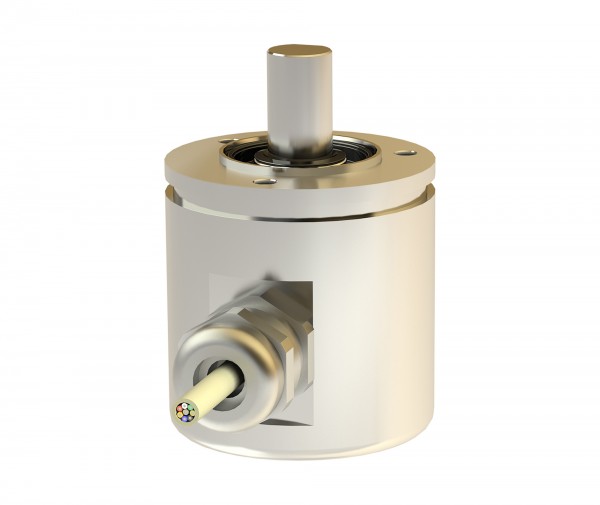

Multiturn Rotary Encoder TME50

Preview: Multiturn Rotary Encoder TME50 Preview: Multiturn Rotary Encoder TME50
Image may differ
Multiturn Rotary Encoder TME50
Multiturn Rotary Encoder TME50

Price on request

Prices plus VAT plus shipping costs

Delivery time approx. 60 business days

Product group:

Design:

Flange and shaft:

Housing material:

Resolution:

Code type:

Measuring range:

Electrical connection:

Interface:

Electrical and/or mechanical variant:

More Options Fewer options

Order code

TME 50 S A 4096 R 4096 S E 01

Would you like more? 3

Bellows Couplings Model BKK Bellows Couplings Model BKK
Nicht verfügbar
Price on request
Oldham Coupling Series 400, Hybrid Coupling Series 184 Oldham Coupling Series 400, Hybrid Coupling...
Price on request
Connector STK8GS53 Connector STK8GS53
Nicht verfügbar
Price on request

Quantity

Description Downloads
Description
Robust case with wall thickness of 5 mm either in seawater resistant aluminum or in stainless... more
Close menu
Product information "Multiturn Rotary Encoder TME50"

Robust case with wall thickness of 5 mm either in seawater resistant aluminum or in stainless steel - shaft in stainless steel - rotating components with permanent magnet in front chamber - electronic circuit with ASiC and Hall elements and interface components fitted within main chamber, separated from rotating components by a metallic wall - integral counter for the acquisition of revolutions, with non - volatile storage - optional potting against water jets (IP 69K) - electrical connections via round plug or lead exit.

Special feature: Digital multiturn memory
Product category: Rotary encoders
Inkremental or absolute: Absolute
Single- or Multiturn: Multiturn
Design: 50 mm
Flange and shaft: Synchroniser flange
Housing material: Aluminium
Stainless steel
Resolution: 4096 steps/360°
Code type: Binary
Gray (optional)
Electrical connection: Cable 1 m
Device connector M12 x 1
Interface: SSI
Electrical and/or mechanical variant: Basic version
Downloads
9 Dateien verfügbar.
more
Close menu
Array
(
[15] => Array
(
[name] => Datenblaetter
[files] => Array
(
[de_DE] => Array
(
[0] => Array
(
[id] => 83
[description] => Datenblatt 11451
[filename] => https://www.twk.de/media/pdf/15/57/8d/11451id0.pdf
[size] => 1372020
[attributes] => Array
(
)
)
)
[en_GB] => Array
(
[0] => Array
(
[id] => 84
[description] => Data sheet 11451
[filename] => https://www.twk.de/media/pdf/7d/a2/b5/11451ie0.pdf
[size] => 1115750
[attributes] => Array
(
)
)
)
[fr_FR] => Array
(
[0] => Array
(
[id] => 85
[description] => Fiche technique 11451
[filename] => https://www.twk.de/media/pdf/66/23/35/11451if0.pdf
[size] => 1057000
[attributes] => Array
(
)
)
)
)
)
[17] => Array
(
[name] => Handbücher
[files] => Array
(
)
)
[19] => Array
(
[name] => Zertifikate
[files] => Array
(
)
)
[21] => Array
(
[name] => Step Dateien
[files] => Array
(
)
)
[16] => Array
(
[name] => GSD-ESD-ESI
[files] => Array
(
)
)
[18] => Array
(
[name] => Anleitungen
[files] => Array
(
[en_GB] => Array
(
[0] => Array
(
[id] => 3345
[description] => Installation Instructions 16169
[filename] => https://www.twk.de/media/pdf/d6/bc/08/16169ae0.pdf
[size] => 5137980
[attributes] => Array
(
)
)
)
)
)
[20] => Array
(
[name] => Software
[files] => Array
(
)
)
[56] => Array
(
[name] => Technische Dokumentation
[files] => Array
(
)
)
[22] => Array
(
[name] => Sonstige
[files] => Array
(
[en_GB] => Array
(
[0] => Array
(
[description] => UKCA Declaration of Conformity
[filename] => https://twk.de/media/pdf/89/01/24/16569ae0.pdf
)
)
[en_de] => Array
(
[0] => Array
(
[description] => Reach Konform/compliant
[filename] => https://twk.de/media/pdf/97/34/49/15286fb0.pdf
)
[1] => Array
(
[description] => RoHS Konform/compliant
[filename] => https://twk.de/media/pdf/7f/81/9f/13284hb0.pdf
)
[2] => Array
(
[description] => POP Declaration of Conformity
[filename] => https://twk.de/media/pdf/b0/73/2c/17238ab0.pdf
)
)
[globe] => Array
(
[0] => Array
(
[description] => CE Declaration of Conformity
[filename] => https://twk.de/media/pdf/0d/49/0e/12467rx0.pdf
)
)
)
)
)
1

Data sheet

Instructions

Other
