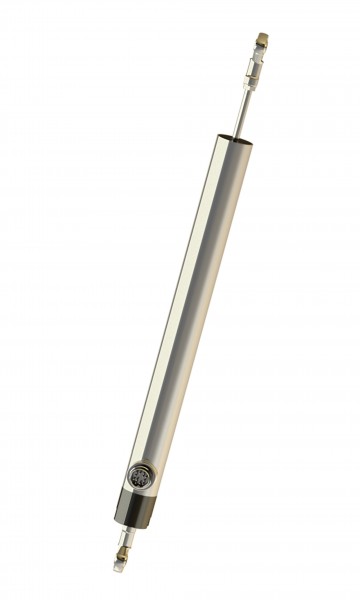

Inductive linear displacement transducers IWE250

Image may differ
Inductive linear displacement transducers IWE250
Inductive linear displacement transducers IWE250
Inductive linear displacement transducers IWE250
Inductive linear displacement transducers IWE250
Price on request

Prices plus VAT plus shipping costs

Delivery time approx. 60 business days

Product group:

Design:

Measuring stroke:

Linearity:

Electrical connection:

Front mechanics:

Mechanics rear:

More Options Fewer options

Bestellschlüssel

IWE 250 40 0,25 KFN

Quantity

The displacement transducers work according to the principle of the differential choke... more
Product information "Inductive linear displacement transducers IWE250"

The displacement transducers work according to the principle of the differential choke (inductive half bridges). They consist of two coils which are encapsulated in a Mu metal cylinder in a sealed and vibration-proof manner. A Mu-metal plunger causes an opposite induction change in the two coils when displaced by the hollow coil body. The displacement transducers are designed for an oscillator frequency of 10 kHz.

Product category: Linear transducers and scanners
Design: 25 mm
Interface: SSI
Measuring range: Up to 200mm
Special feature: Full casting
IW: Electronics integrated
